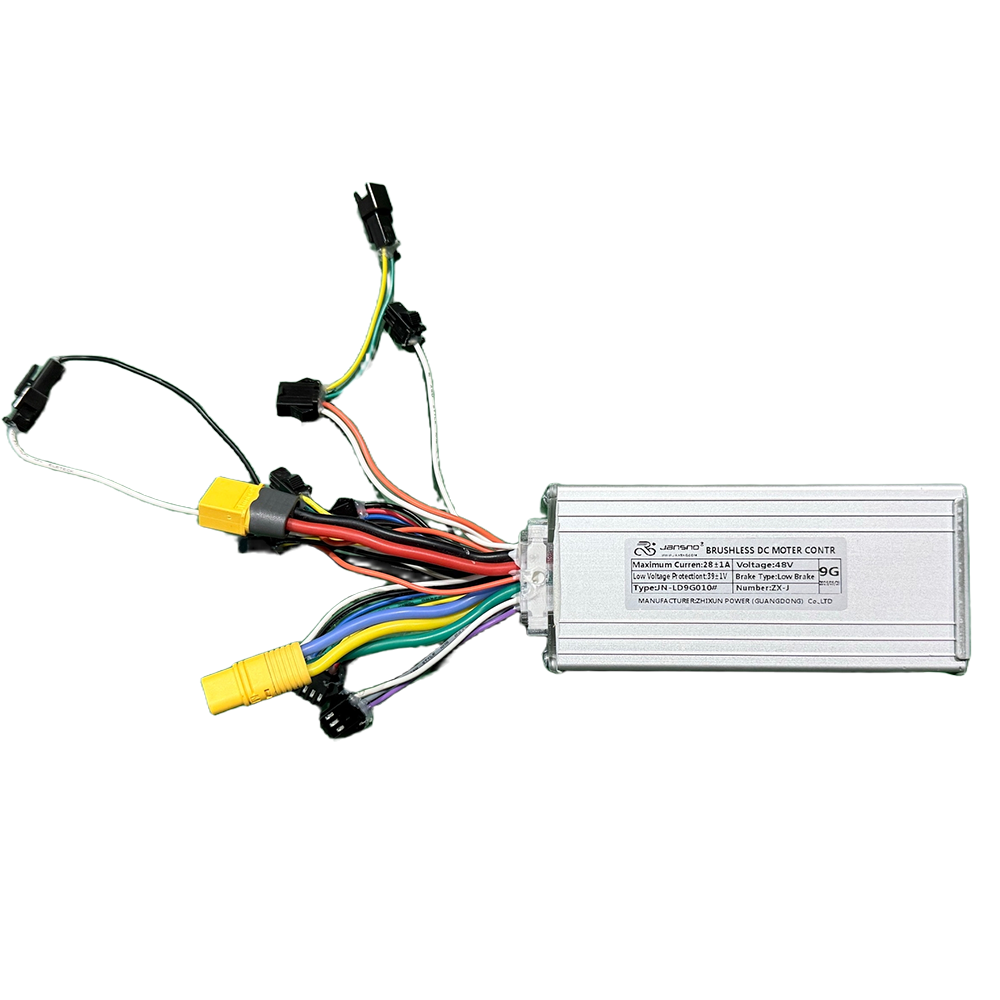

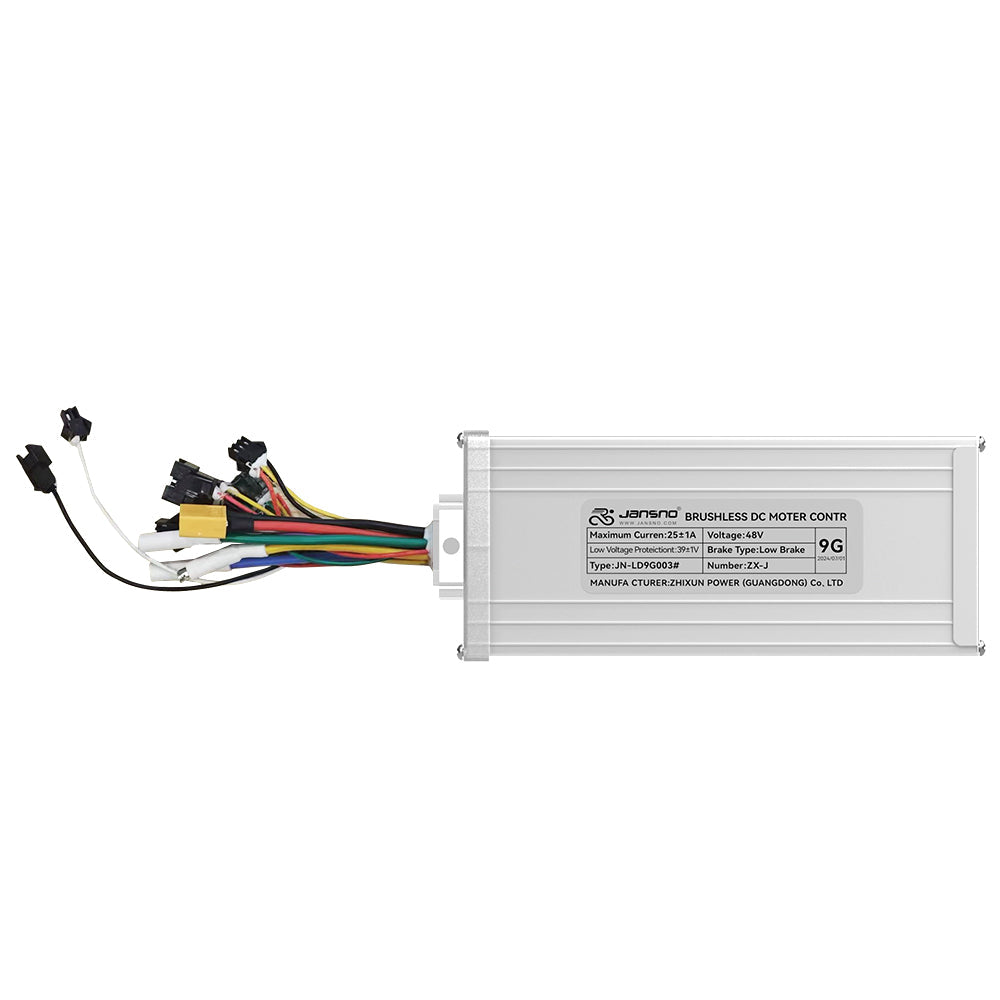

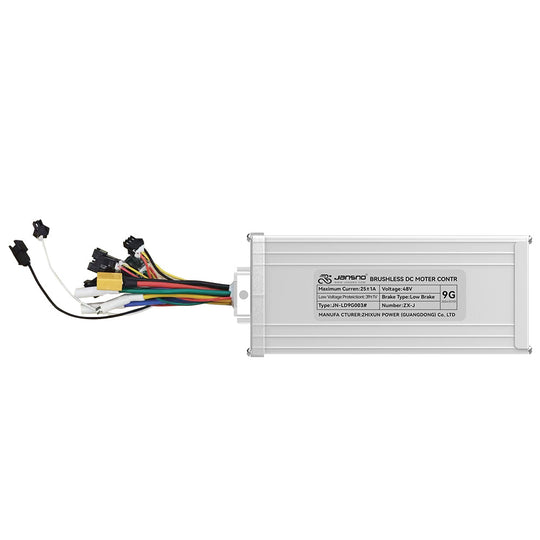

Jansno X50/ X60/ X70 Electric Bike 48V Brushless Motor Controller
£60.00
Regular price
- Ship in 1 Business Days
- Free Shipping and No Tax.
- In stock, ready to ship
Description
🔌 Choose the Right Controller for Your E-bike
Controller Specifications
-
Voltage: 48V
-
Maximum Current: 28A + 1A
-
Low Voltage Protection: 39V + 1V
❓ How to Select the Correct Controller
Check the back of your original controller for a printed label.
Look for the "Type" field to determine the exact model.
All controllers with lock are compatible with wiring harnesses with lock.
However, the tail light connection differs depending on the controller model and the tail light version.
✅ Controller and Tail Light Compatibility Chart
Note: You need to determine your tail light model to decide whether an additional adapter cable is required.

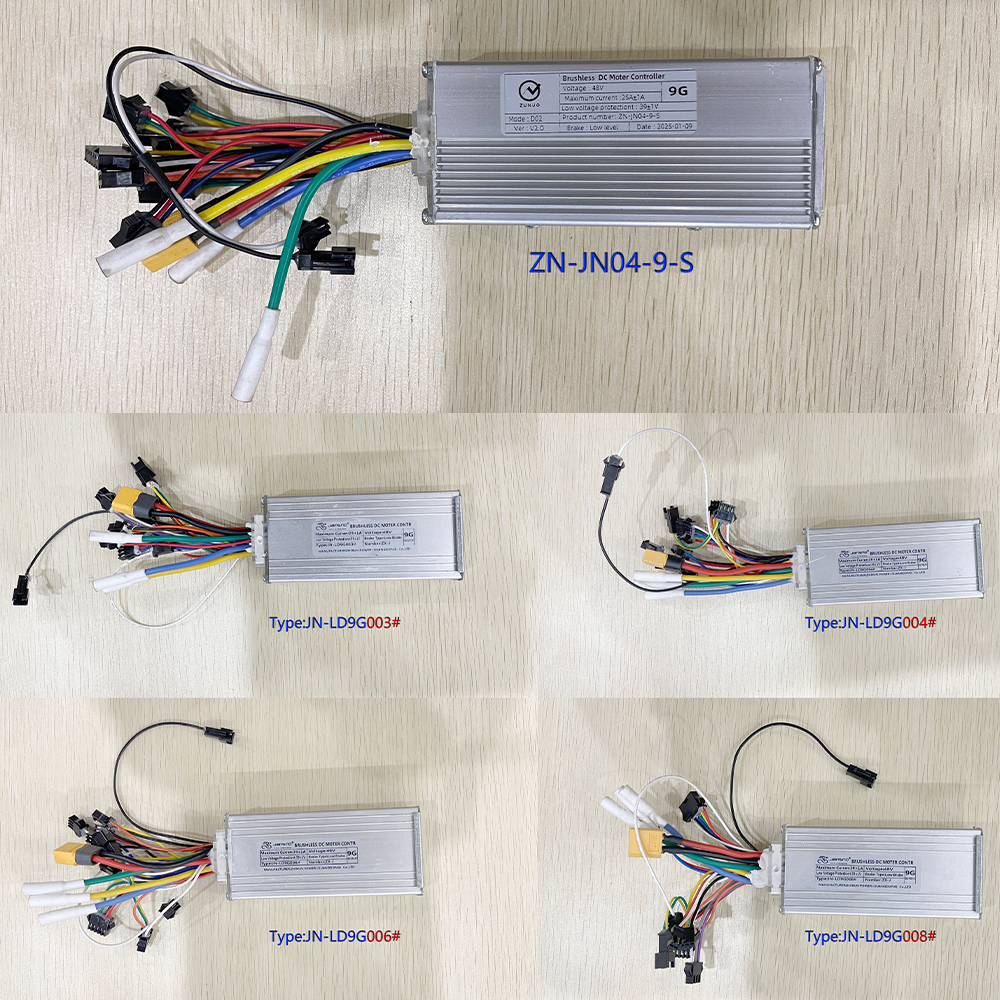

Simplified Controller Replacement Guide
| Original Model | Replacement Model(s) | Special Requirement |
|---|---|---|

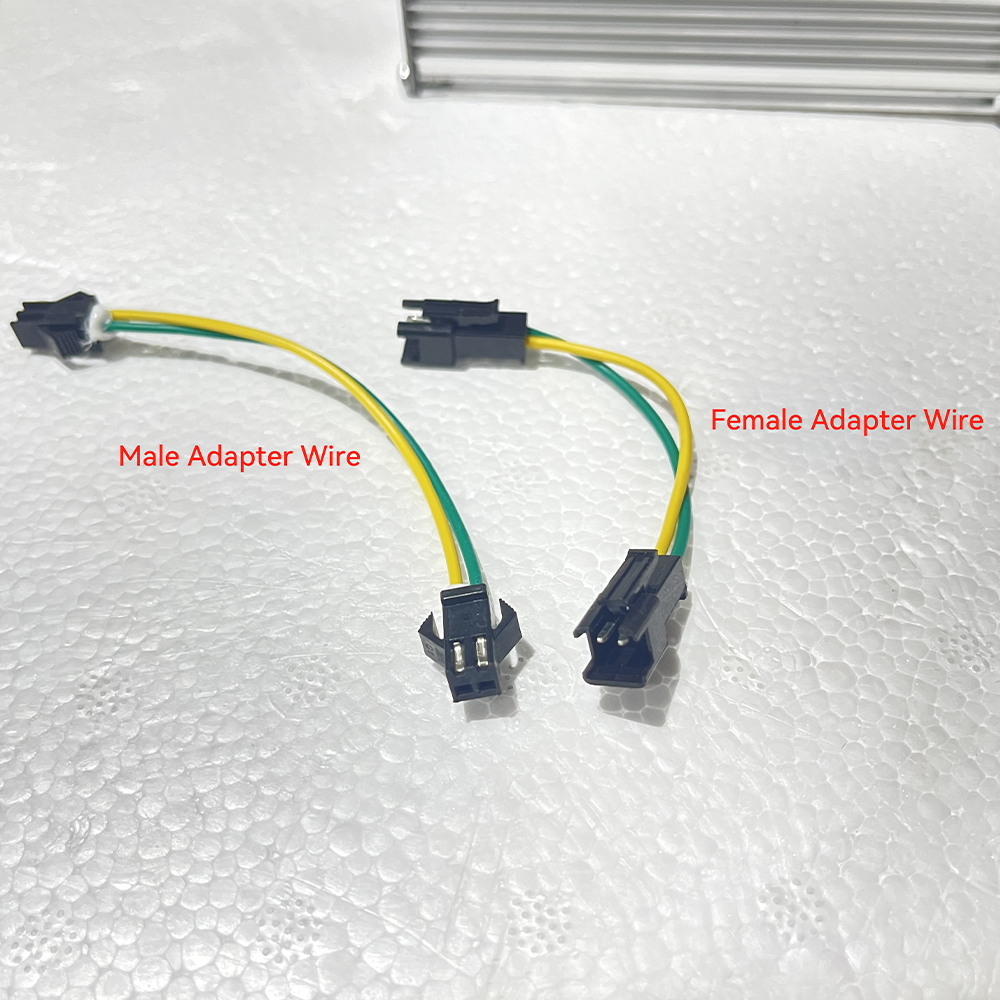

| ZN-JN03-9-S / ZN-JN04-9-S (With Lock) | JN-LD9G003# | If using old tail light, an extra Male Adapter Wire is required |
| JN-LD9G006# (Without Lock) | JN-LD9G004# / JN-LD9G008# | If using old tail light, an extra Male Adapter Wire is required |

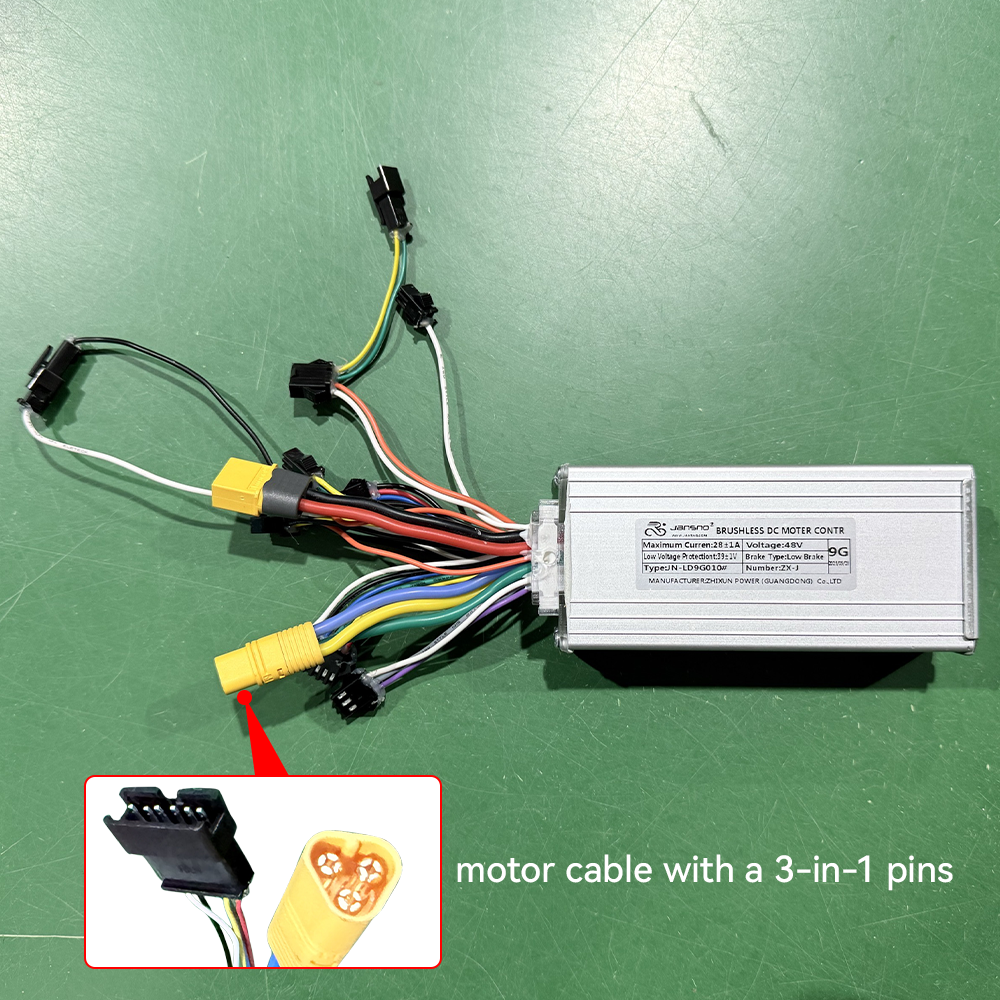

| — (New Version) | JN-LD9G010# | Uses an integrated 3-in-1 motor connector, not compatible with other controllers |
📌 Final Checklist Before Installation
-
Check if your throttle has a key ignition
-
Confirm the controller model number
-
Identify the tail light version: New or Original
-
Ensure the correct adapter cable (if needed)
Incorrect pairing may result in non-functional lights or electrical failure.
